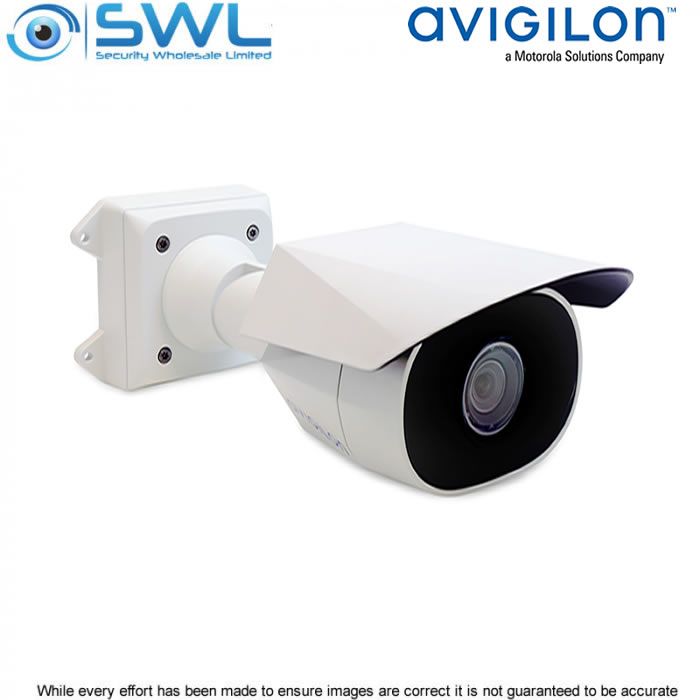

Avigilon 5.0C-H5SL-BO1-IR 5Mp Bullet: WDR LightCatcher IR50m IP67 IK10 3.1-8.4mm
Description
5.0C-H5SL-BO1-IR 5Mp Bullet WDR LightCatcher IR50m IP67 IK10 3.1-8.4mm
YouTube Link to H5SL Range video 1:10
The full feature set of H5SL cameras are supported on ACC 6.14 onwards. They are still compatible with earlier ACC 6 versions.
The H5SL camera line features wide and long-range lens variants offered in variety of resolutions for clear and detailed imaging. It is one of Avigilon's easiest-to-install cameras, providing you with a simple, flexible and cost-effective security solution. American-made*, built with North American expertise and globally sourced materials, Avigilon stands behind the quality of its H5SL cameras with a 5-year warranty. They integrate with Avigilon Control Center VMS (ACC) and are ONVIF-S & T compliant for integration with third party VMS. Significant bandwidth savings and lower storage retention when using these cameras, as well ease of installation, lowers the cost of ownership to end users.
Key Features:
* Resolution - 1/2.8" 5Mp Progressive CMOS.
* Lens / FOV - 3.1-8.4mm F/1.6 motorised. 35°- 90° (H).
* Min Illumination - 0.04 Lux colour. 0.02 Lux (F/1.6) in monochrome mode.
* IR capability - 30-50m. Content adaptive IR.
* Video Format - H.264 / H.265 HDSM SmartCodec.
* Day/ Night, WDR - 110dB with WDR on.
* Audio Compression - Opus, G.711 PCM 8kHz.
* Audio Input/ Output - Line level input & output.
* External I/O Terminals - Alarm in, Alarm out.
* Storage - Micro SD slot min calls 6. Class 10/UHS-1 or better.
* Bandwidth Management - HDSM SmartCodec, Idle Scene Mode.
* Security 1 - Password protection, HTTPS encryption, digest authentication,
* Security 2 - WS authentication, user access log, 802.1x port based authentication
* Power - PoE. Max 9W.
* Ingress Rating - IP67. IK10 Impact rating (vandal resistant).
* Dimensions - 285mm x 131mm x 97mm.
H4/ H5 Accessories:
* H4-BO-JBOX1 Wall Mount Back Box 46840
* H4-MT-POLE Pole Mount Adapter 46785
* H4-MT-CRNR1 Corner Mount Adapter 46784
* H4-AC-WIFI1-NA USB-WiFi Adaptor 46780
UNUSUAL MOTION DETECTION Video 1:27
UMD is an advanced artificial intelligence (AI) technology that brings a new level of automation to surveillance. Without any predefined rules, UMD technology continuously learns what typical activity in a scene looks like, and then detects and records motion anomalies. UMD is also supported on H4M and H4A cameras.
Please see H5SL specification sheet and Avigilon analytics guide below.
