Provision-ISR SH-8100A5-8L(1U) 8CH Hybrid DVR 8x AHD +8CH IP 2x HDD. No HDD inc

Stock Code:
33748
POA

Description

Provision-ISR SH-8100A5-8L (1U) 8CH AHD +8CH IP Hybrid DVR

Key Features:
* Analogue Video Inputs - 8CH Standard BNC (AHD) Max 8Mp Lite
* IP Video Inputs - Hybrid Modes with switch. Max 8Mp IP.
* Max Input - 8CH AHD 8Mp Lite with 8x 8Mp IP (32Mbps) or 16CH IP (64Mbps)
* Max output - 96Mbps
* Recording - Up to 20CH @ recording resolution (with outgoing bandwidth restriction)
* Max Decoding - See specification sheet, max output 18Mbps.
* Video Compression - H.265 / H.264
* Analytic Support - Analogue: Line Crossing (no direction choice), Sterile Area
* Analytic Support - IP: Line Crossing (wuth direction choice), Sterile Area, Object Monitoring
* PTZ Support - RS-485 / IP. Supports Pelco D/P, Samsung, ONVIF S

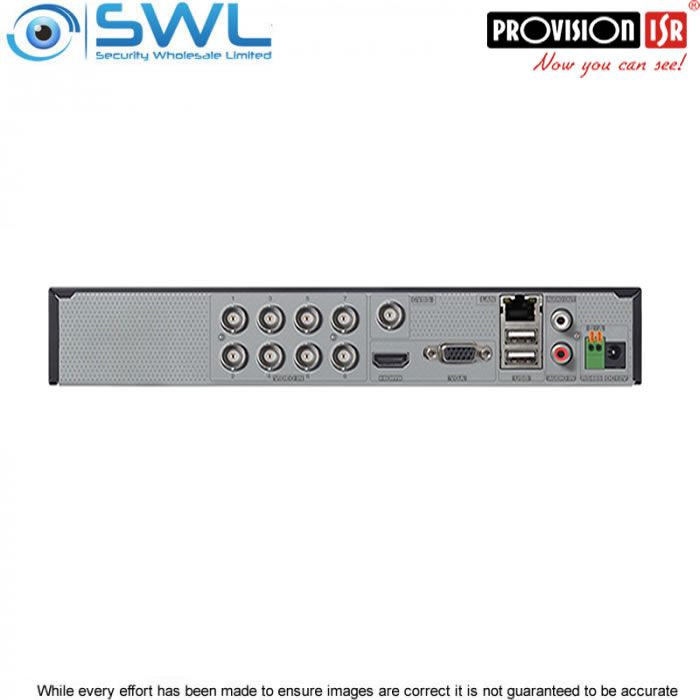

* Display Outputs - HDMI 1x (1920 x 1080), VGA (1280 x 1024), CVBS (Spot).
* Storage - 2x HDD bay. Max 8Tb. Not included
* Ethernet Port - 1000 Mbps (RJ-45)
* Alarm Input / Output - 8CH IP / 2CH IP
* Dimensions - 375mm (W) x 275mm (D) x 45mm (H)
* APP Support - Provision CAM2 for iOS/ Android

Storage Options:
* 2Tb (46073)
* 4Tb (46075)
* 6Tb (460751)
* 8Tb (460752)

For full specification download .pdf below.

Stock Level:
Low Stock
