Avigilon H4A Multisensor 15C-H4A-3MH-180 Camera Only 3x 5Mp WDR L/Catcher 4mm
Description
15C-H4A-3MH-180 Multisensor Camera 3x 5Mp 4mm - Modular Design.
YouTube Link to Quick Multisensor Overview 49s
The H4 Multisensor camera line combines Avigilon self-learning video analytics with exceptional coverage and adaptability. These cameras are ONVIF S v2.0 compliant and support H.265 compression for a no-hassle integration. All H4 Multisensor camera modules must be ordered with matching adapter and dome cover options (see below).
Key Features:
* Resolution - 3x 1/2.8" 5Mp Progressive CMOS
* Lenses / FOV - 3x 4mm, F/1.3. 72° (H)
* Min Illumination - 0.05 Lux (F1.6) colour mode. 0.010 Lux (F1.6) monochrome mode
* IR Capability - Optional module - up to 30m
* Image Compression - H.265 HDSM SmartCodec
* Day/ Night, WDR - 100dB
* Max Analytic Frame Rate - 15 fps (60Hz) when enabled on all sensors
* Storage - SD/ SDHC/ SDXC slot. Class 10/UHS-1 or better recommended.
* External I/O- Alarm In/ Alarm Out.
* Audio Support - Line level input/ output. G.711 PCM 8 kHz.
* Power - 25.5W PoE+ no IR. 51W PoE++ with IR. 24VDC/ VAC. See specifications.
* Ingress Rating - IP66 and IK10 vandal resistance.
* Dimensions - See specification sheet.
* Security 1 - Password protection, HTTPS encryption, digest authentication.
* Security 2 - WS authentication, user access log, 802.1x port based authentication.
(PENDANT) WALL MOUNT

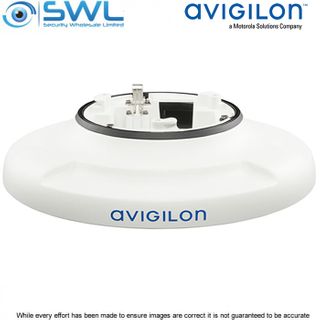

* H4AMH-AD-PEND1 47438
* H4AMH-DO-COVR1 47444

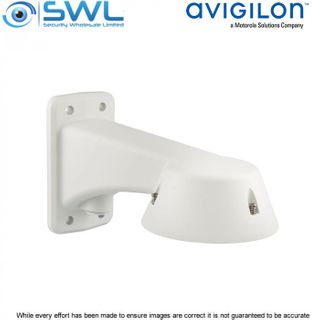

* IRPTZ-MNT-WALL1 47440
* H4AMH-AD-IRIL, Optional IR module 47448
* Add 'Side' Pole Mount (H4-MT-POLE1) or Corner Mount (H4-MT-CRNR1) as required.
PENDANT NPTA MOUNT (For Dropper Pole)
* H4AMH-AD-PEND1 47438
* H4AMH-DO-COVR1 47444
* IRPTZ-MNT-NPTA1 47441
* H4AMH-AD-IRIL, Optional IR module 47448
* See Pendant parts for dropper solution.
SURFACE MOUNT
* H4MH-AD-DOME1 47442
* H4AMH-DO-COVR1 47444
* H4AMH-AD-IRIL, Optional IR module 47448
IN-CEILING MOUNT
* H4MH-AD-CEIL1 47443
* H4MH-DC-COVR1 47446
* No IR option.
Power Option:
* Avigilon 60W PoE++ Gigabit Injector 48537
See specification sheet for all camera and configuration options as well as analytics.
