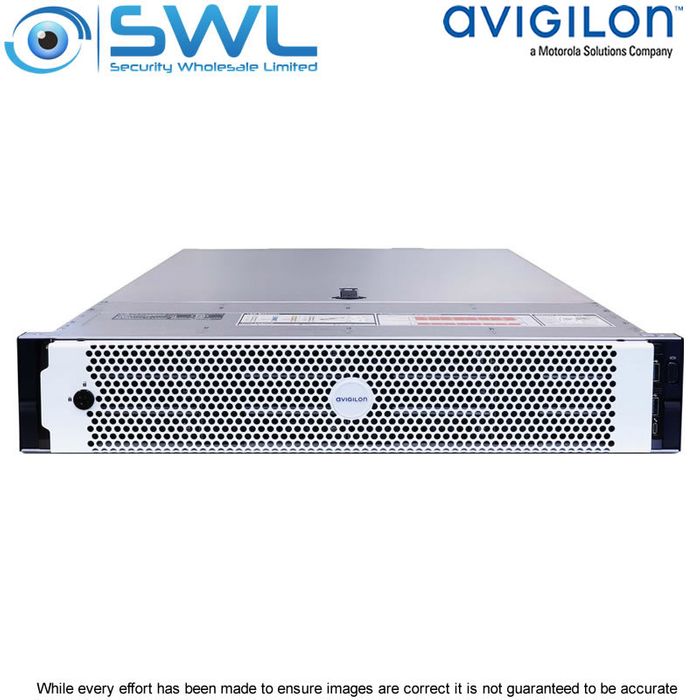

Avigilon HD NVR4 STD 48TB 2U Rack Mnt, Windows 10 IoT LTSB
Description
NVR4 Standard 48Tb - Up to 450 Mbps Recording Rate
The NVR4 series are Avigilon's next generation of NVRs with high retention capacity and throughput. They provides secure, reliable and scalable platforms for high performance end-to-end security solutions. The NVR4 Standard is a 2U rack mountable recorder delivering high throughput and retention, backed by Avigilon's three-year warranty, extend-able up to five years. The NVR4 Standard can be used individually or as a cluster of NVRs designed for IP video and video analytics meta-data storage.
Key Standard Features
* Configured for and preloaded with ACC™ VMS.
* Optimised to natively support Avigilon Appearance Search technology.
* Up to 450 Mbps dedicated recording plus live stream/ playback rate. 900 Mbps total.
* Available with 16TB to 48TB on board storage.
* Hot-swappable components.
* Separate operating system and video storage volumes for non-disruptive maintenance.
* An easy to access and maintain 2U rack mount chassis.
* Three year extendable warranty, with on-site parts delivery service.
Quick Specifications
* Network Connection - 1Gbe with multiple network connections.
* Recording Rate - 450 Mbps
* Playback/ Live - 450 Mbps (whilst maintaining recording)
* Storage - This model 48Tb after RAID.
* Appearance Search Capacity - Up to 80 H4A analytic cameras with Enterprise licences.
* Network Interfaces - 4 x 1Gbe RJ-45 ports (1000Base-T)
* Operating System - Windows 10 IoT Enterprise LTSB
* Video output - VGA
* Dimensions - 2U. 717.6mm x 482.0mm x 86.8mm with bezel.
* Power Input - 100 to 240 VAC.
* Power Supply - 80 plus Titanium. Optional secondary power supply available
* Power consumption - Average 270W to max 750W.
Supplied with sliding rail system with cable management arms, front bezel and power cord.
For further information see data sheet below.
