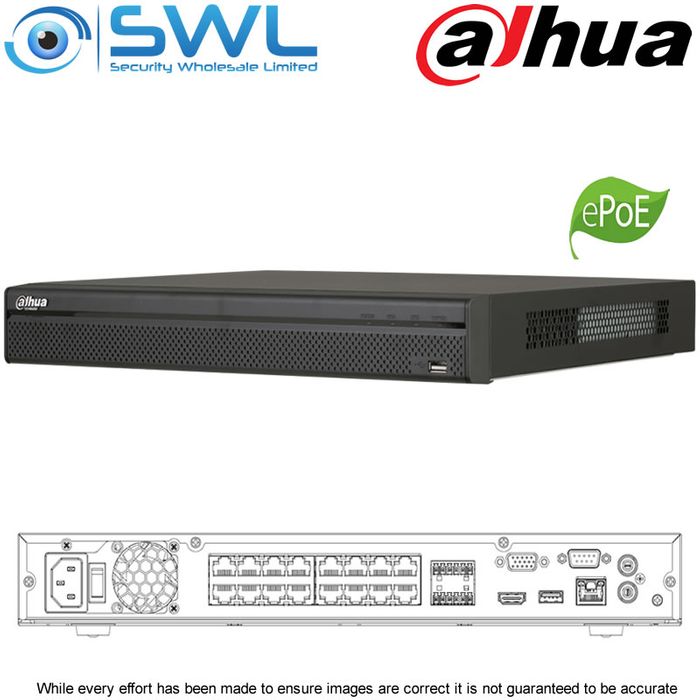

Dahua NVR 5216-16P-4KS2E: 16CH, 16x PoE (8x ePoE), 2x HDD, NO HDD inc.
Description
Pro Series ePoE 16CH NVR - 2 Drive Bays, 1U
August 2019:
This NVR will support Dahua AI camera features, excluding Facial Recognition
when Dahua's latest firmware is installed. Please refer to SWL Technical team.
Key Features:
* IP Video Inputs - 16
* Onboard PoE - 16. Ports 1-8 are ePoE and EoC
* PoE Output - Max 25.5W for single port, 130W max in total
* Max Input / Record - 320Mbps
* Max Decoding - 2ch@ 4K, 16ch@ 1080P max
* Video Compression - Smart H.265+ / H.265+, Smart H.264
* Display Outputs - 1x HDMI, 1x VGA output. Simultaneous video output
* Storage - 2x drive bays, max capacity 10Tb each bay (not included)
* Ethernet Port - 1. Independent 1000Mbps port
* Alarm - 4x channels in, 2 relays out
* IVS Support I - Tripwire, intrusion, object abandoned / missing.
* IVS Support II - People counting, heat map, face detection
* Key Features I - 12Mp/ 4K resolution, 1x live Fisheye de-warp.
* Key Features II - 3ch ANPR. ANR backup when cameras have SD. POS
* Dimensions - 375mm x 326.5 x 53mm
* APP Support - Apple, Android. Easy4IP, gDMSS
Storage Options:
* 4Tb (46075)
* 6Tb (460751)
* 8Tb (460752)
* 10Tb (460753)
For full NVR specification download data sheet below.
