Avigilon 2.0C-H4IRPTZ-DP30-WP PTZ: IR 250m 30x Zoom Analytics IP66 IK10 4.3-129m
Description
Avigioon 2.0C-H4IRPTZ-DP30-WP PTZ IR 250m 30x Zoom Analytics IP66 IK10 4.3mm-129mm

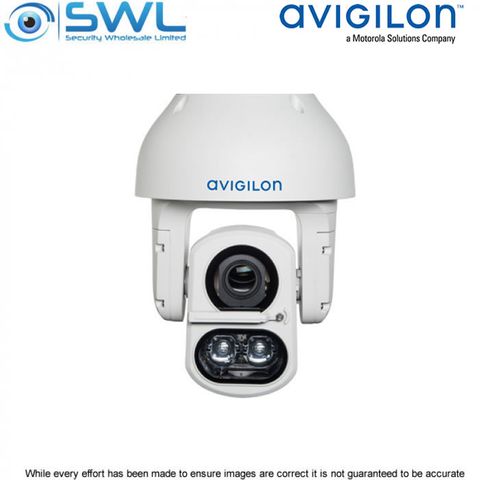

The Avigilon H4 IR PTZ is a high-resolution outdoor PTZ camera with 250m IR illumination range that automatically adjusts the IR projection angle according to zoom and field of view, ensuring the scene is well illuminated. Combined with wide dynamic range (WDR), image stabilization and Avigilon patented LightCatcher(TM) technology, this camera provides exceptional images in a wide range of applications and environments.
YouTube Link to H4 PTZ Video 2:18
Key Features:
* Resolution - 1/2.8" 2Mp Progressive CMOS.
* Lens / FOV - 4.3-129mm F/1.6 motorised. 2.3°- 63.7° (H).
* Min Illumination - 0.1 Lux colour F/1.6 (no IR), 0.03 lux F/1.6 mono' mode. 0 lux IR.
* IR Capability - 250m.
* Video Format - H.264.
* Day/ Night, WDR - 120dB WDR.
* Storage - Micro SD +. Class 10 or better recommended.
* Bandwidth Management - HDSM SmartCodec, Idle Scene Mode.
* Power - 24VDC 75W max. For temperatures -10 to 50 degrees, 60W Hi-PoE.
* Ingress Rating - IP66, IK10 impact rating.
* Dimensions - 226mm x 313mm. Pendant Mount.
* Security 1 - Password protection, HTTPS encryption, digest authentication.
* Security 2 - WS authentication, user access log, 802.1x port based authentication.
Power Option:

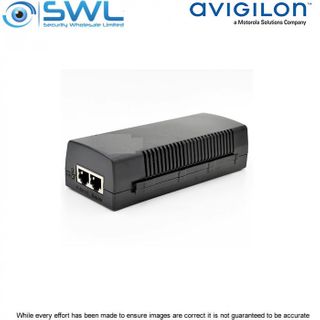

* Avigilon 60W PoE++ Gigabit Injector 48537
Mounting Options:
* IRPTZMH-MNT-WALL1 Wall Mount Bracket 47440

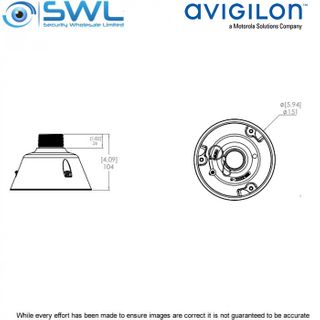

* IRPTZ-MNT-NPTA1 Pendant NPT Adapter 47279
* H4-MT-POLE1 Pole Mounting Bracket 46785
* H4-MT-CRNR1 Corner Mounting Bracket 46784
Examples of Video Analytic Rules:
* People or vehicles moving in an area.
* People or vehicles crossing a beam.
* People or vehicles loitering in an area.
* Person or vehicles enters/ leaves an area.
* Person or vehicles moving in a prohibited direction of travel.
* Too many or too few persons in a secured area.
* Object or objects appear in, or are not present in, an area.
