Avigilon 2.0C-H4PTZ-DP30 PTZ, LightCatcher WDR 30x Zoom IP67 IK10 4.3mm - 129mm
Description
The Avigilon H4 PTZ camera line combines high-speed tracking and 360-degree coverage with excellent image quality, low-light performance and video analytics. Available in 1Mp and 2Mp resolutions in outdoor pendant and in-ceiling mount formats.
This camera is equipped with LightCatcher™ technology, enabling exceptional color images in low light, as well as true wide dynamic range (WDR) for detailed images in both extreme brightness and darkness. It is also enabled with self-learning video analytics, for object tracking, alarm notifications and the ability to zoom in for key details.
Key Features:
* Resolution - 1/2.8" 2Mp Progressive CMOS.
* Lens / FOV - 4.3-129mm F/1.6 motorised. 2.3°- 63.7° (H).
* Min Illumination - 0.1 Lux colour F/1.6, 0.03 lux F/1.6 in monochrome mode.
* Video Format - H.264.
* Day/ Night, WDR - 120dB WDR.
* Storage - Micro SD +. Class 6 or better.
* Bandwidth Management - HDSM SmartCodec, Idle Scene Mode.
* Power - 24VDC 57W max, 60W PoE. IEEE802.3at Class 4 25.5W Max with PoE+.
* Ingress Rating - IP67, IK10 impact rating.
* Dimensions - 226mm x 313mm. Pendant Mount.
Power Option:
* Avigilon PoE+ Injector 55V 30W max (48536).
Mounting Options:

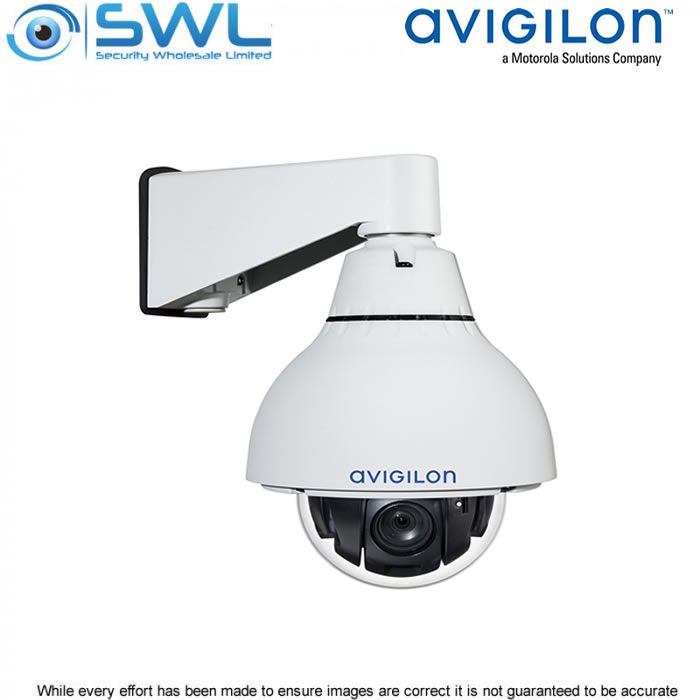

* Pendant Wall Mount - CM-MT-WALL1 (47379).
* Pole Mounting Bracket - H4-MT-POLE1 (46785).
* Corner Mounting Bracket - H4-MT-CRNR1 (46784).
Examples of Video Analytic Rules:
* People or vehicles moving in an area.
* People or vehicles crossing a beam.
* People or vehicles loitering in an area.
* Person or vehicles enters/ leaves an area.
* Person or vehicles moving in a prohibited direction of travel.
* Too many or too few persons in a secured area.
* Object or objects appear in, or are not present in, an area.
