Trojan TDL 8FB – 8 Way Fuse Board AC/DC
Description

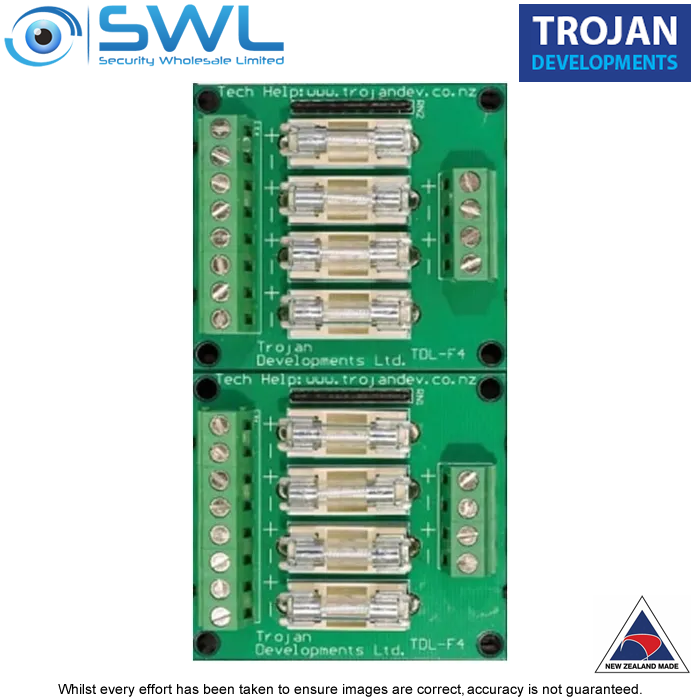

The 8 Way Fuse Board has 2 sets of 4 fuses that can be separately fed or linked together to give you 8 individual 3amp fused outputs. Each fuse has an associated LED to indicate that the fuse is operative. The LED illuminates red for normal positive 12Vdc operation, green for negative polarity and amber for up to24Vac supply.
The board can be used for the protection of 24Vac cameras too but the fuses need to be changed to 1amp ( and as noted earlier ) the LED will illuminate amber.
The board fits the TDL Mounting Base, which makes installation very easy and tidy as it allows all cables to be run behind the PCB and covered by a cover that also has an area for labeling. They can be connected together with other boards to make up a complete system of relays, fuses, timers etc… The TDL Mounting Base also comes complete with fixing tape.
Features:
* 8 separate fused circuits
* Fuse size: 20mm x 5mm
* Suitable for two individual power supplies
* Maximum fuse rating value: 5amps
* Diagnostic LEDs
* Quality rising clamp PCB terminals (maximum cable size 2.5mm2)
* Snap-off V-cut for separation into 2 x 4 Way Fuse Boards
* Dimensions: 110mm W x 60mm H x 23mm D
* 8-Way Fuse Board
* Fuse holders for 20mm x 5mm fuses
* Terminals for positive and negative outputs - the positive outputs are fused
* Suitable for dc and ac power supplies
* LED indication for each fuse - located underneath the fuse glass
* Maximum supply current per 4-Way Fuse Board is 20A
* Maximum output current is 5A per fuse
* Quality rising clamp terminals (maximum cable size 2.5mm2)
* The unit is based on the standard TDL foot print so that it can be mounted with other TDL boards on the optional TDL Mounting Base
* Board dimensions: 55mm W x 60mm H x 23mm D
Another Great New Zealand Product by Trojan Developments
