Trojan TDL FAB – Fire Alarm Interface 12VDC

Stock Code:
09166
POA

Description

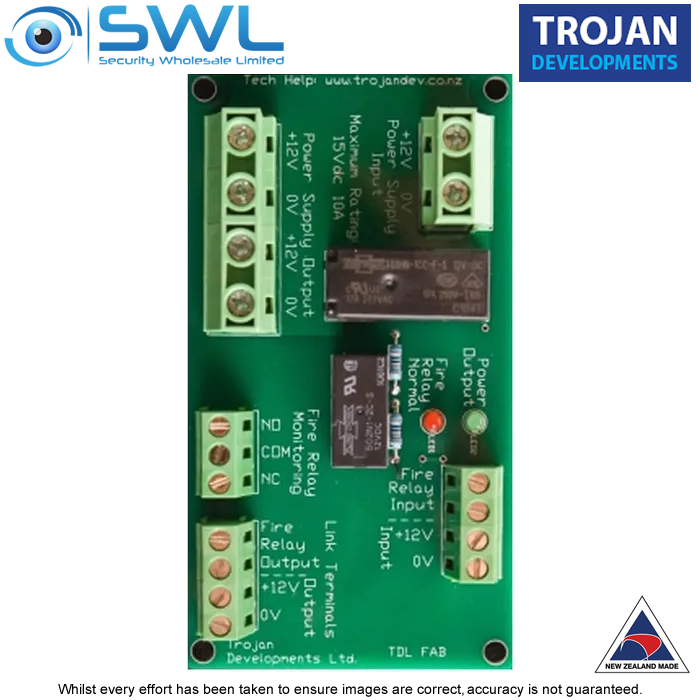

The TDL Fire Alarm Interface board allows for the neat installation of the required interface between the Fire Alarm and the Access Control Systems and the monitoring off them In the past we have had to use an unsightly Omron LY2 relay or equivalent 10amp relay and base which never looks the part in an Access Control cabinet. With the TDL Fire Alarm Interface board you have a unit that matches the other boards, has onboard protection for overloading and the inputs and outputs for monitoring

Features:
* Clean contact input from the Fire Alarm Relay. A closed contact indicates the normal condition.
* An open contact indicates a fire alarm situation
* Terminals for the input from the Access Control System 12Vdc power supply
* Two sets of power supply outputs.
* The outputs are turned off upon a fire alarm activation (dropping power to the locks)
* 10Amp fuse to protect the two power supply outputs
* Relay output for the monitoring of the fire alarm relay status
* Relay output for monitoring of the power supply fuse
* LED indications for the power supply input, Fire Alarm input and the power supply
* Output protection fuse (located underneath the fuse)
* Interface to the fire alarm system by clean contact input
* Two power output which enables the feeding of two TDL relay or fuse boards.
* Total power output 10amps resistive max
* Fire alarm system input monitoring
* Power supply fuse status monitoring
* Quality rising clamp terminals (maximum cable size 2.5mm2)
* Board dimensions: 110mm W x 60mm H x 23mm D
* Compatible with the TDL Mounting Base with integrated cable trunking

Another Great New Zealand Product by Trojan Developments
