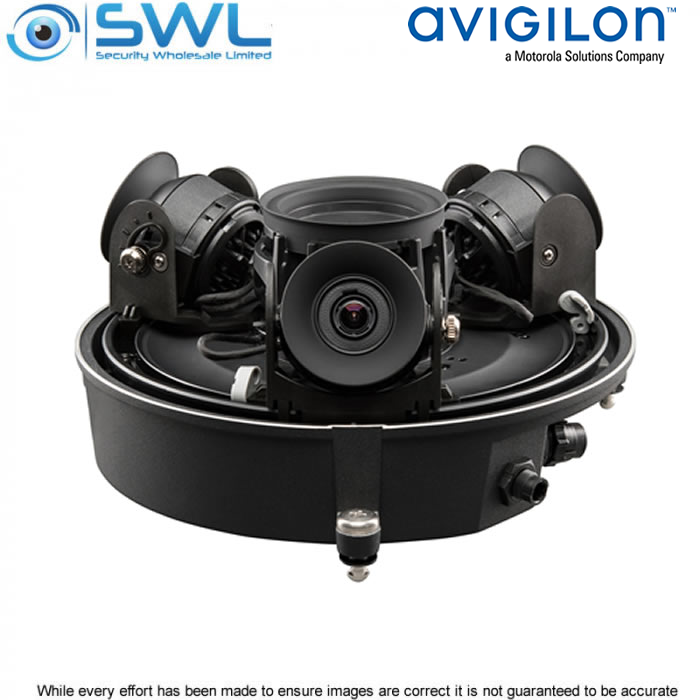

Avigilon H4A Multisensor 24C-H4A-3MH-180 Camera Only 3x4K WDR LightCatcher 5.2mm
Description
H4A Multisensor Camera 3x 8Mp 5.2mm - Modular Design.
24C-H4A-3MH-180
The H4 Multisensor camera line combines Avigilon self-learning video analytics with exceptional coverage and adaptability.
These cameras are ONVIF S v2.0 compliant and support H.265 compression for a no-hassle integration.
All H4 Multisensor camera modules must be ordered with matching adapter and dome cover options (see below).
Key Features:
* Resolution - 3x 1/2.5" 8Mp Progressive CMOS.
* Lenses / FOV - 3x 5.2mm, F/1.8. 70° (H).
* Min Illumination - 0.2 Lux (F1.8) colour mode. 0.04 Lux (F1.8) monochrome mode.
* IR Capability - Optional module - up to 30m.
* Image Compression - H.265 HDSM SmartCodec.
* Day/ Night, WDR - 100dB.
* Max Analytic Frame Rate - 12 fps (60Hz) when enabled on all sensors.
* Storage - SD/ SDHC/ SDXC slot. Class 10/UHS-1 or better recommended.
* External I/O- Alarm In/ Alarm Out.
* Audio Support - Line level input/ output. G.711 PCM 8 kHz.
* Power - 25.5W PoE+ no IR. 51W PoE++ with IR. 24VDC/ VAC. See specifications.
* Ingress Rating - IP66 and IK10 vandal resistance.
* Dimensions - See specification sheet.
* Security 1 - Password protection, HTTPS encryption, digest authentication.
* Security 2 - WS authentication, user access log, 802.1x port based authentication.
PENDANT WALL MOUNT
* H4AMH-AD-PEND1 (47438)
* H4AMH-DO-COVR1 (47444)
* IRPTZ-MNT-WALL1 (47440)
* Optional IR module, H4AMH-AD-IRIL (47448)
PENDANT POLE MOUNT
* H4AMH-AD-PEND1 (47438)
* H4AMH-DO-COVR1 (47444)
* IRPTZ-MNT-NPTA1 (47441)
* Optional IR module, H4AMH-AD-IRIL (47448)
* H4-MT-POLE1 (46785)
* See Pendant parts for dropper solution.
SURFACE MOUNT
* H4MH-AD-DOME1 (47442)
* H4AMH-DO-COVR1 (47444)
* Optional IR module, H4AMH-AD-IRIL (47448)
IN-CEILING MOUNT
* H4MH-AD-CEIL1 (47443)
* H4MH-DC-COVR1 (47446)
* No IR option.
Power Option:
* Avigilon 60W PoE+ Gigabit injector (48537)
